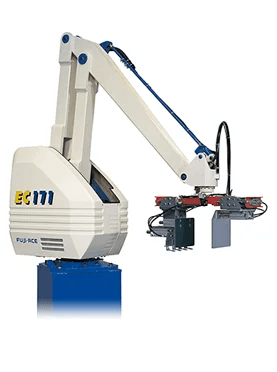

EC-171 (Medium to High Speed Robotic Palletizer)

The EC.171 robot has the largest working envelope of all Fuji Robots while maintaining the smallest rotation radius. The EC.171 is energy efficient using only 0 kva while still allowing the robot to work in tight space conditions and accomplishing a very high palletizing rate.

Enquire Now

Fuji ACE Model EC-171HS EC-171HD
Type of Motion Multi-Articulated
Action Mode Cylindrical
Load Capacity(Including End Effector) 180kg(170lbs) 160kg(340lbs)
Palletizing Capacity (cycles / hour) 1500 1000
Degree of freedom 4 axis

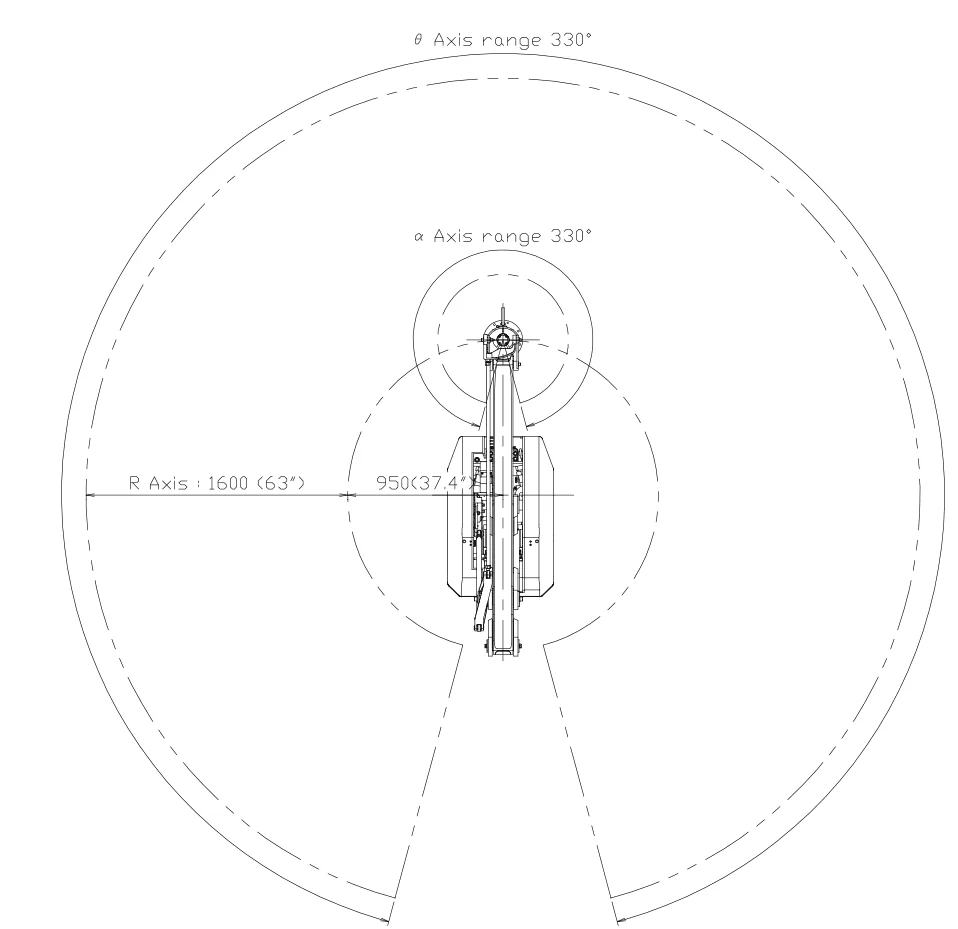

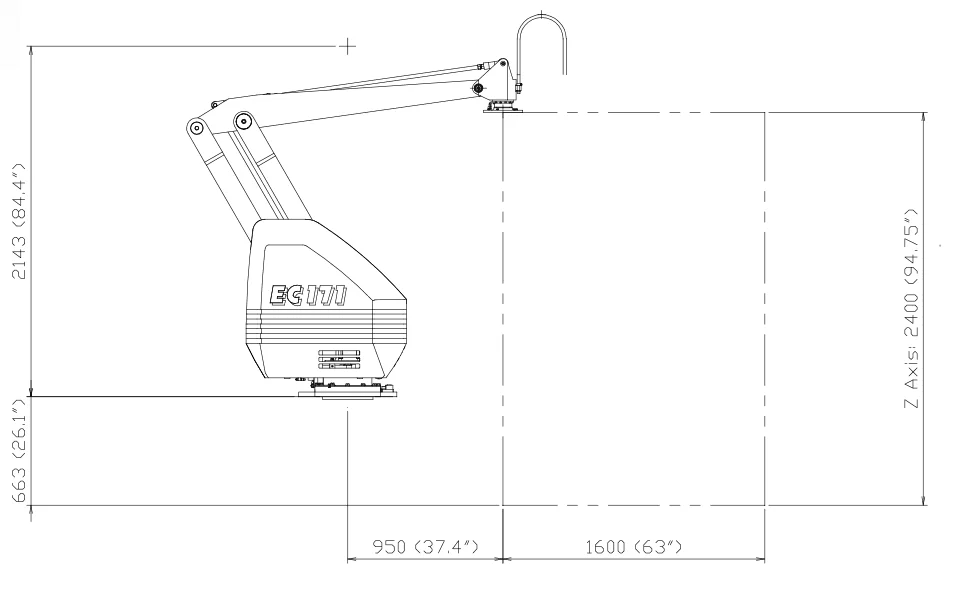

Operating Area Z axis (vertical) 2400mm(94.75")
R axis(longitudinal) 1600mm(63.125")
Theta axis (rotation) 330°
Alpha axis (Wrist) 330°
Repeatability ±0.1mm
Memory 120-400 Programming locations available
Teaching method Teaching playback / Teaching Support
Power Requirements (200/220v,3Phase,50/60 HZ)
Power Consumption (Without Peripheral Equipment Load) 4KVA / 10.5amps
Robot Weight(Without End Effector) 750kg (1654lbs)
Pneumatic Consumption (*Using Standard fuji Case or Bag End Effector) *5.7SCFM @ 70psi(0.5MPa)
Note: Capacity rates can be significantly affected by layouts. product types,and can be confirmed after a detailed analysis of an application.


We are helping to solve various problems related to material handling / logistics equipment / industrial robots. Please do not hesitate to consult us.

Enquire Now

Smallest rotation radius
