EC-171 (High Speed Palletizing)

EC-171 is the High-Speed Robotic Palletizer & has the largest working envelope of all Fuji Robots while maintaining the smallest rotation radius. The EC-171 Robotic Palletizer is energy efficient using only 0 kva while still allowing the robot to work in tight space conditions and accomplishing a very high palletizing rate.


Fuji ACE Model EC-171HS EC-171HD
Type of Motion Multi-Articulated
Action Mode Cylindrical
Load Capacity(Including End Effector) 180kg(170lbs) 160kg(340lbs)
Palletizing Capacity (cycles / hour) 1500 1000
Degree of freedom 4 axis

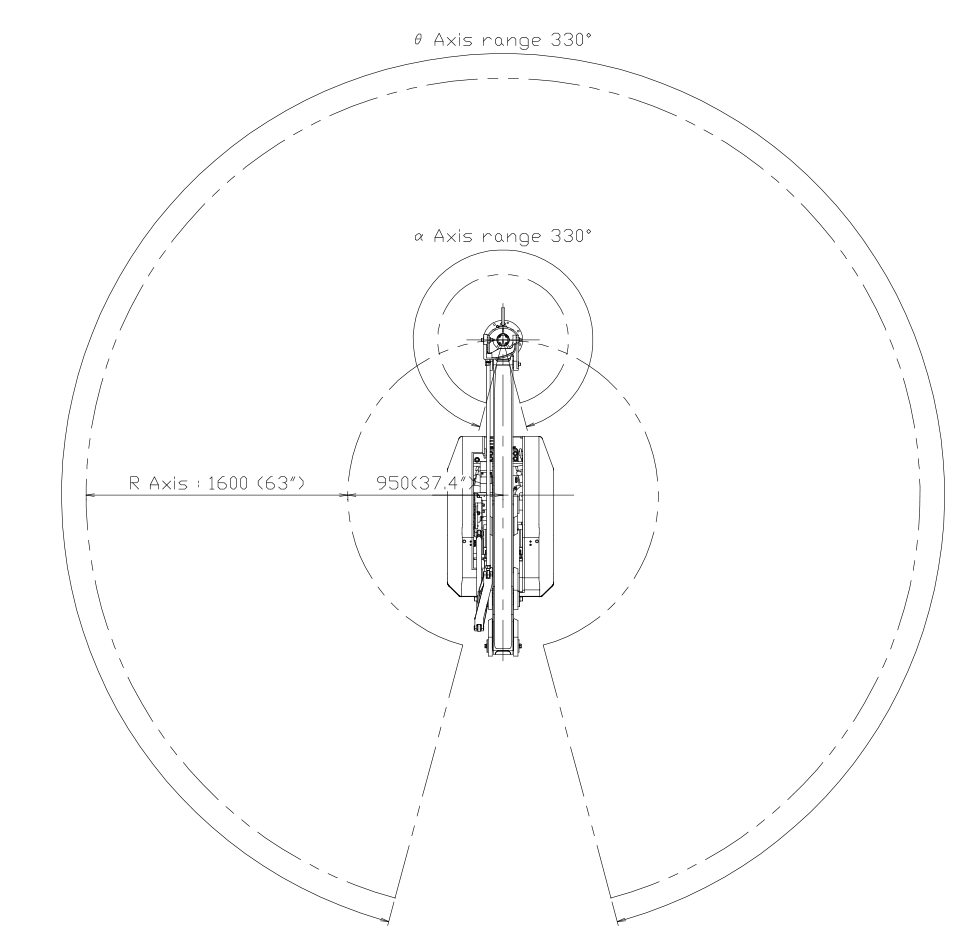

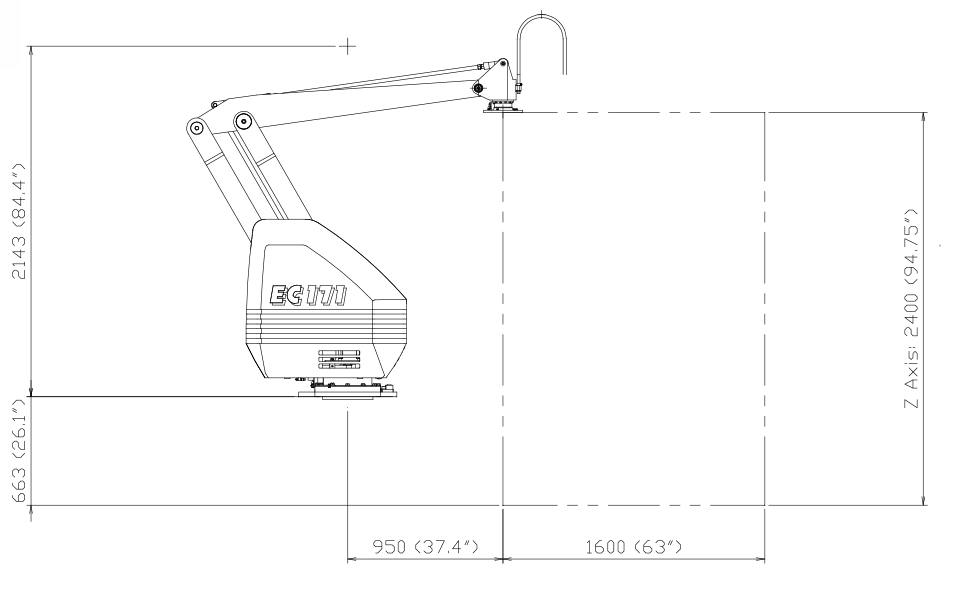

Operating Area Z axis (vertical) 2400mm(94.75")
R axis(longitudinal) 1600mm(63.125")
Theta axis (rotation) 330°
Alpha axis (Wrist) 330°
Repeatability ±0.1mm
Memory 120-400 Programming locations available
Teaching method Teaching playback / Teaching Support
Power Requirements (200/220v,3Phase,50/60 HZ)
Power Consumption (Without Peripheral Equipment Load) 4KVA / 10.5amps
Robot Weight(Without End Effector) 750kg (1654lbs)
Pneumatic Consumption (*Using Standard fuji Case or Bag End Effector) *5.7SCFM @ 70psi(0.5MPa)
Note: Capacity rates can be significantly affected by layouts. product types,and can be confirmed after a detailed analysis of an application.
