EC-201W (Heavy Payload Robotic Palletizer)

Through many years of research and development the EC.201 robot Is one of the most technologically advanced robotic palletizes on the market today. With three EC.201 models to choose from. Foil offers a solution for High Speed (HS) , Heavy Weight (HD) and/or Super Heavy Weight (W) applications.

Fuji ACE Model EC-201W
Type of Motion Multi-Articulated
Action Mode Cylindrical
Load Capacity(Including End Effector) 320kg(700lbs)
Palletizing Capacity (cycles / hour) 600
Degree of freedom 4 axis

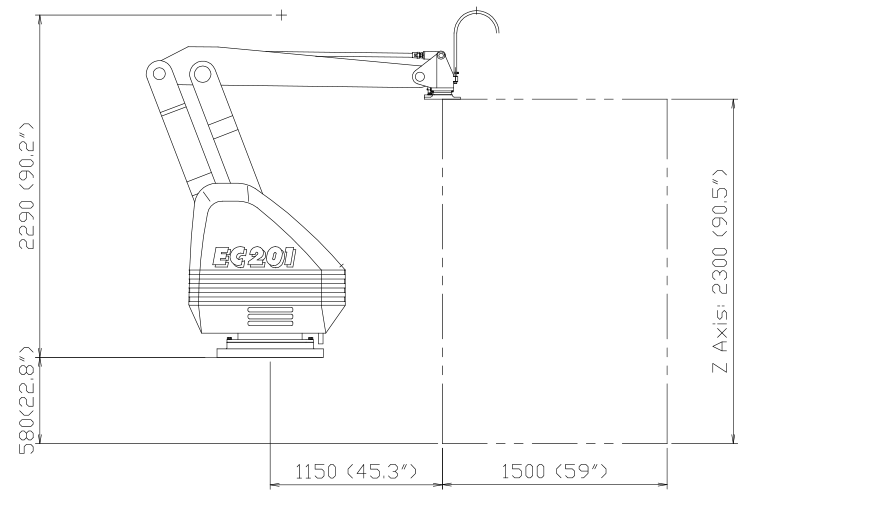

Operating Area Z axis (vertical) 2300mm(90.5")

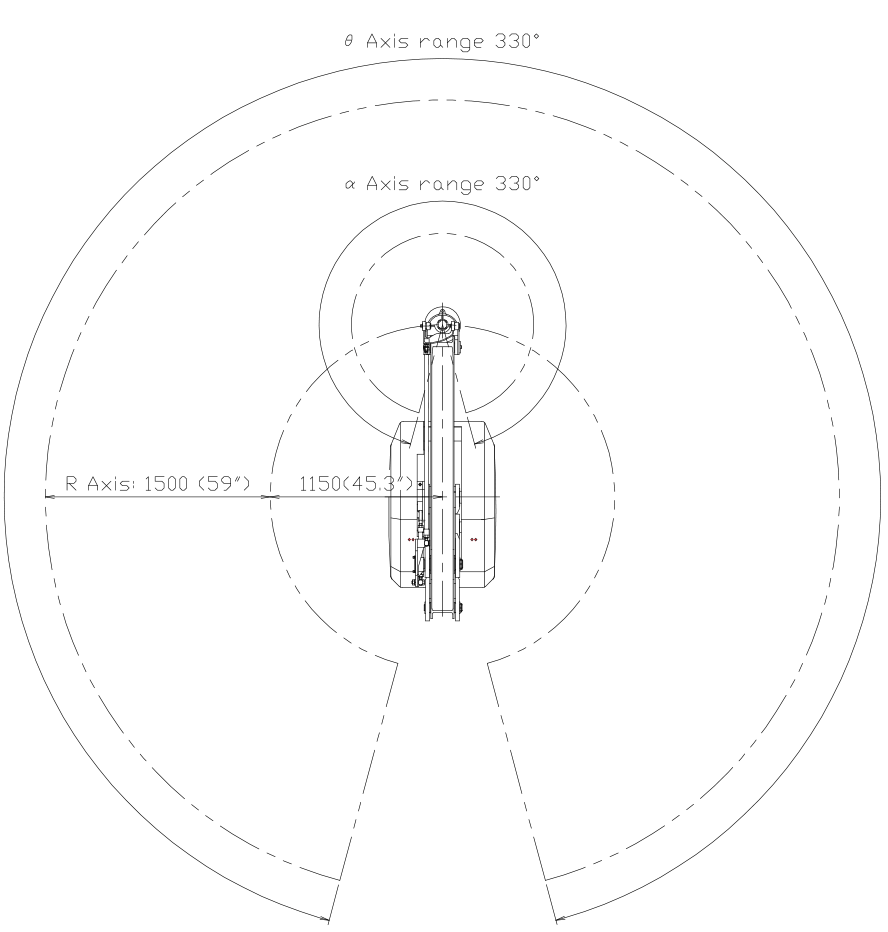

R axis(longitudinal) 1500mm(59")
Theta axis (rotation) 330°
Alpha axis (Wrist) 330°
Repeatability ±0.1mm
Memory 120-400 Programming locations available
Teaching method Teaching playback / Teaching Support
Power Requirements (200/220v,3Phase,50/60 HZ)
Power Consumption (Without Peripheral Equipment Load) 7KVA / 18.4amps
Robot Weight(Without End Effector) 1150kg (2536lbs)
Pneumatic Consumption (*Using Standard fuji Case or Bag End Effector) *5.7SCFM @ 70psi(0.5MPa)
Note: Capacity rates can be significantly affected by layouts. product types,and can be confirmed after a detailed analysis of an application.
